Multi Touch Fhd Windows Rugged Tablet Pc Quad Core

Place of Origin : Guangdong, China

Brand Name : OEM/ODM

Model Number : DW-103

MOQ : 2 pieces

Price : $380.00/pieces 2-99 pieces

Product name : 10 Inch Rugged Tablet 8g Ram 128gb rom Gps Rj45 rugged tablet pc

Processor : N4120 4C/4T 1.1-2.6GHZ

Screen : 10.1" 1280*800 IPS

RAM/ROM : 8GB+128GB

System : Win 10pro

Battery : 8000mAh

Color : Black

Interface : Type-c/USB 3.0/RS232/TF card/SIM/HD-MI

Optional Function : GPS/4G LTE/NFC/Fingerprint

Keywords : rugged tablet win-dows

Contact Now

ndustry Ip67 10 Inch Rugged Tablet Pc Win-dows10 8g Ram 128gb rom Gps Rj45 with RS232 com port Fingerprint Industrial Rugged Tablet PC

Product Description

Type	Details	Descriptions
Product Form	Form Factor	IP67 Rugged Tablet PC
	Dimensions	280×184×26.5mm
	Weight	1.15KG
LCD	Screen Size	10.1"
	Screen Resolution	800×1280 (IPS+HD+300ANSI) (Standrd)
TP	Touch Module	G+G Multi Touch (10 Points)
Battery	Type	Rechargeable lithium polymer
	Capacity	8000mAh/7.6V
	Working Time	Over 8 hours (FHD local video display)
System Hardware Configuration:
Type	Details	Descriptions
CPU	Type	Intel Gemini lake N4120 (Quad Core)
	Speed	1.1GHz ~ 2.6GHz (N4120)
GPU	Type	Intel UHD 600 Graphics
Memory	Capacity	8GB LPDDR4
Storage	eMMC	128GB
Camera	Front	2M
	Rear	5M
Speaker	Built-in	8Ω/1W*2pcs with water proof
Micphone	Built-in	Yes
G-sensor	Built-in	Yes
Light-sensor	Built-in	Optional
Network Connections:
Type	Details	Descriptions
WIFI	WIFI Module: Intel AC3165	WIFI 802.11ac/b/g/n 2.4G&5Ghz Dual-band
Bluetooth	BT Module: Intel AC3165	Bluetooth4.2
4G LTE	Optional	/
QR code Scanners	Optional	/
GPS	BD2/GPS/Glonass (Choose two of the three)	/
NFC	Optional	/
Fingerprinter	Optional	/
RFID	UHF band	/
Ethernet Network	RJ-45	1000Mbps Gigabit Lan
Interface Configuration:
Type	Details	Descriptions
Type-C	Type-C 3.1	×1pc (Support Data transfers and Power output)
USB Interface	USB3.0	×2pcs
SD / TF Card reader	TF Card reader	×1pc (up to 512GB)
SIM Card Slot	SIM Slot for 4G LTE	×1pc
Audio Jack	3.5mm standard headphone+Microphone	×1pc
HDMI	Micro HDMI 2.0	×1pc (Output 4K@60fps UHD video)
COM Port	DB9 (RS232)	×1pc
Button Switch:
Type	Details	Descriptions
Power	On/Off	×1pc
Volume	Down/UP	×1pc
HotKey	Hot Key for QR Scanner	×1pc
Forced outage	Power restart when push restart button	×1pc
Main Accessories:
Type	Details	Descriptions
Power adapter	DC 12V/3A	×1pc
User's Manual	User's Manual	×1pc
Handle Straps	Handle straps and hand clasping	/
Extension Docking	USB2.0; Power charging; RJ45; RS232	Optional
Vehicle Bracket	USB2.0; Power charging; RJ45; RS232	Optional
Software Configuration:
Type	Details	Descriptions
Power on Function	By Power Button or Auto Power on	Optional
Wake up on Lan	Wake up on Lan by RJ45	Yes
PXE	Preboot Execution Environment	Yes
Security	TPM2.0 (Hardware) contained	Optional
Operating System	Windows 10 Pro or above	Yes (Officoal Windows license is Optional)
Environment:
Temperature	Operation Temperature	-10oC ~ 55oC (1080p or 4K local video display)
	Storage Temperature	-20oC ~ 70oC (Restore to Operation Temperature 2hr before use)
Humidity	Oprating Humidity	35% ~ 80% relative humidity, Non-condensing
	Storage Humidity	20% ~ 93% relative humidity, Non-condensing
Certification:
IP67	IP67 Certification	Yes
CE	CE-Red	Yes
MIL-STD-810G	Match the military standard of USA	Yes

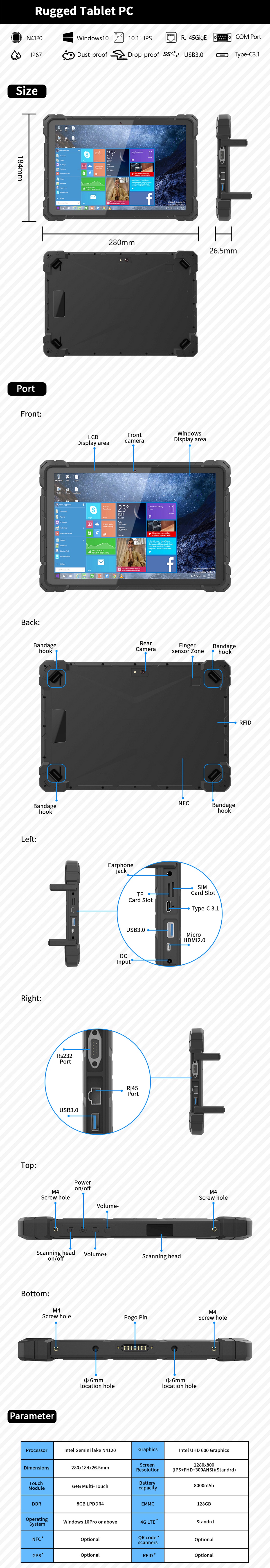

Product show
